Jayco Pinnacle Fifth Wheel RVs For Sale

Previous
Next
1 of 14

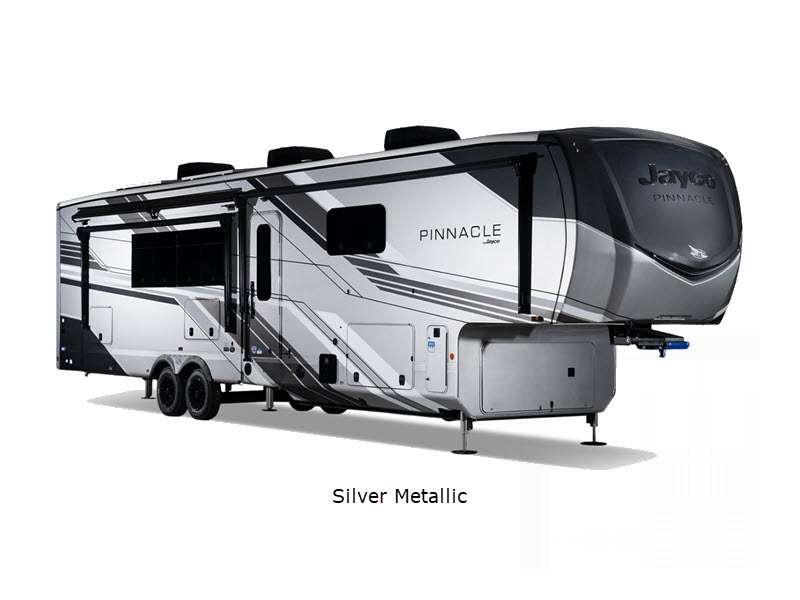

The Pinnacle fifth wheels by Jayco are setting the bar for luxury, technology features, and eye-catching exteriors! Towing is made hassle-free thanks to the 5 Star Handling Package that includes a MORryde rubber pin box, Goodyear Endurance Tires, and Dexter axles with Nev-R-Adjust brakes, so come along!



Step inside and find Vintage or Modern Farmhouse interior decor paired with solid hardwood cabinetry, (made in USA) vinyl flooring, and LED accent lighting above the slide outs. The JayCommand "Smart RV" system will make setting up your fifth wheel easier than ever, plus there is a JayVoice command system to control the lighting, A/C, and furnace without even having to get off of the sofa. You will appreciate the 102" wide body construction creating open living spaces, and each model includes a pass-through storage with Slam-Latch baggage doors so nothing needs to be left behind.



Comfort comes standard in a Pinnacle fifth wheel by Jayco. Choose your favorite floorplan today!



  • Pinnacle 32RLTS

    Pinnacle 32RLTS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 32RLTS highlights: Walk-In Shower with a Seat Kitchen ... more about Pinnacle 32RLTS

    Specifications

    Sleeps 4
    Slides 3
    Length 36 ft 4 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Vintage Farmhouse
    Exterior Color Diamond, Sand, Steel
    Hitch Weight 2395 lbs
    GVWR 16275 lbs
    Dry Weight 13290 lbs
    Cargo Capacity 2985 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size 215/75R17.5"H
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 4
    Number of Awnings 2
    LP Tank Capacity 40
    Water Heater Capacity 16 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu

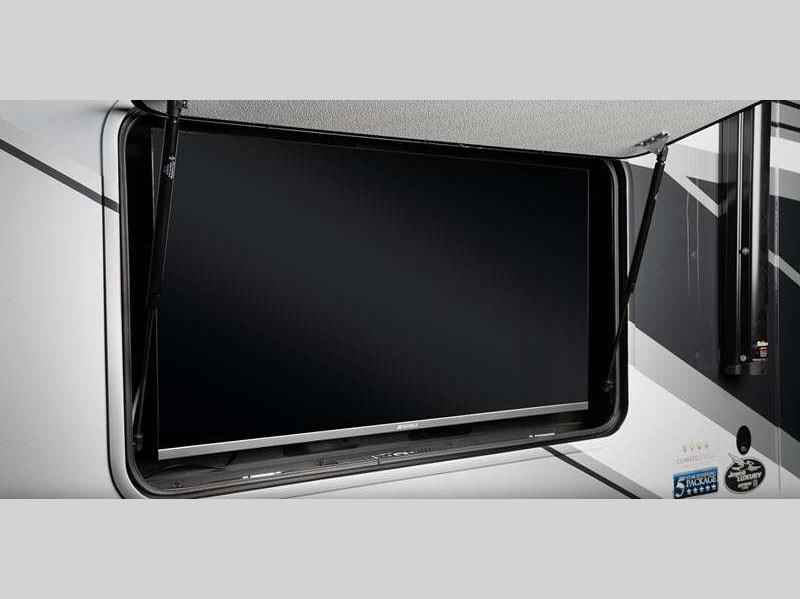

    TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV
    Awning Info 10' and 16' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 3
    Shower Type Walk-In Shower
    Electrical Service 50 amp

    Similar Floorplans

  • Specifications

    Sleeps 4
    Slides 3
    Length 41 ft 1 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Vintage Farmhouse
    Exterior Color Diamond, Sand, Steel
    Hitch Weight 2780 lbs
    GVWR 16995 lbs
    Dry Weight 14270 lbs
    Cargo Capacity 3080 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size 215/75R17.5"H
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 4
    Number of Awnings 2
    LP Tank Capacity 40 lbs.
    Water Heater Capacity 16 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV
    Awning Info 11' and 17' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 3
    Shower Type Walk-In Shower
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 37MDQS

    Pinnacle 37MDQS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 37MDQS highlights: Four Slides Residential ... more about Pinnacle 37MDQS

    Specifications

    Sleeps 8
    Slides 4
    Length 41 ft 8 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 3 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Vintage Farmhouse
    Exterior Color Diamond, Sand, Steel
    Hitch Weight 3020 lbs
    GVWR 17900 lbs
    Dry Weight 14970 lbs
    Cargo Capacity 2930 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size 215/75R17.5"H
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 4
    Number of Awnings 2
    LP Tank Capacity 40 lbs.
    Water Heater Capacity 16 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV, Den/Office TV
    Awning Info 10' and 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 3
    Shower Type Walk-In Shower
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 38FBRK

    Pinnacle 38FBRK Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 38FBRK highlights: Rear Kitchen King Bed Slide Out ... more about Pinnacle 38FBRK

    Specifications

    Sleeps 4
    Slides 3
    Length 43 ft 11 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 8 ft 7 in
    Interior Color Modern Farmhouse, Vintage Farmhouse
    Exterior Color Diamond, Sand, Steel
    Hitch Weight 2940 lbs
    GVWR 18000 lbs
    Dry Weight 14995 lbs
    Cargo Capacity 3005 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size 215/75R17.5'H
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type GE Residential
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 4
    Number of Awnings 2
    LP Tank Capacity 40 lbs.
    Water Heater Capacity 16 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" 4K Smart LED HDTV, BR & Ext 32" 4K Smart LED TV
    Awning Info 15' & 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 3
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36FBTS

    Pinnacle 36FBTS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 36FBTS highlights: Spacious Master Bath Fireplace Two ... more about Pinnacle 36FBTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 40 ft 9 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 4 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Vintage Farmhouse
    Exterior Color Diamond, Sand, Steel
    Hitch Weight 2695 lbs
    GVWR 17250 lbs
    Dry Weight 14065 lbs
    Cargo Capacity 3185 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 87 gals
    Tire Size 215/75R17.5'H
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 4
    Number of Awnings 2
    LP Tank Capacity 40 lbs.
    Water Heater Capacity 16 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV
    Awning Info 11' and 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 3
    Shower Type Walk-In Shower
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 36SSWS

    Pinnacle 36SSWS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 36SSWS highlights: Spacious Walk-In Shower Bedroom ... more about Pinnacle 36SSWS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 3
    Length 40 ft
    Ext Width 8 ft 6 in
    Ext Height 13 ft 3 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Vintage Farmhouse
    Exterior Color Diamond, Sand, Steel
    Hitch Weight 2915 lbs
    GVWR 17650 lbs
    Dry Weight 14735 lbs
    Cargo Capacity 2915 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 87 gals
    Black Water Capacity 50 gals
    Tire Size 215/75R17.5"H
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 4
    Number of Awnings 2
    LP Tank Capacity 40 lbs.
    Water Heater Capacity 16 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV
    Awning Info 10' and 19' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 3
    Shower Type Shower w/Seat
    Electrical Service 50 amp

    Similar Floorplans

  • Pinnacle 38FLGS

    Pinnacle 38FLGS Floorplan Image

    Take a Virtual Tour

    Jayco Pinnacle fifth wheel 38FLGS highlights: Spacious Rear Bath King Bed Slide ... more about Pinnacle 38FLGS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 4
    Length 44 ft 5 in
    Ext Width 8 ft 6 in
    Ext Height 13 ft 5 in
    Int Height 8 ft 6 in
    Interior Color Modern Farmhouse, Vintage Farmhouse
    Exterior Color Diamond, Sand, Steel
    Hitch Weight 2865 lbs
    GVWR 18000 lbs
    Dry Weight 15350 lbs
    Cargo Capacity 2650 lbs
    Fresh Water Capacity 75 gals
    Grey Water Capacity 82.5 gals
    Black Water Capacity 74 gals
    Tire Size 215/75R17.5'H
    Furnace BTU 40000 btu
    Available Beds King
    Refrigerator Type Residential
    Refrigerator Size 21 cu ft
    Convection Cooking Yes
    Cooktop Burners 4
    Number of Awnings 2
    LP Tank Capacity 40 lbs.
    Water Heater Capacity 16 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 30000 btu
    TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV, Kit. 32" TV
    Awning Info 14' Electric with LED Lights
    Axle Count 2
    Washer/Dryer Available Yes
    Number of LP Tanks 3
    Shower Type Walk-In Shower
    Electrical Service 50 amp

    Similar Floorplans

Pinnacle Features:

Standard Features (2024)



Standard Exterior Equipment

  • (3) 40 lb. LP propane bottles with auto regulator (120 lb. max LP system)
  • 102 in. widebody construction
  • 12 in. structural steel I-beam with 10 in. steel drop frame
  • 120V heat blankets on all tanks plus 12V heat tape on fresh water line
  • 3,000 lb. tow hitch with 4-way pin
  • Battery disconnect
  • Built in sewer hose carrier
  • Climate Shield™ zero-degree tested weather protection:
  • 40,000 BTU output furnace
  • Double layer fiberglass batt insulation (roof and floor)
  • Fully enclosed and heated underbelly (ducted)
  • PEX plumbing, 2 in. block foam and reflective foil
  • Custom automotive-grade vinyl exterior graphics package
  • Digital TV antenna with Wi-Fi extender
  • Exterior marine-grade speakers with Bluetooth® controller
  • Frameless dark tinted safety-glass windows
  • Fully enclosed, universal docking center:
  • Black tank flush
  • Independent satellite wiring
  • Quick-connect outside shower
  • Selectable water connections
  • Whole coach cable hookups
  • Winterization and sanitation
  • Inverter pre-wire to select outlets
  • JayPort outside griddle prep (standard on all floorplans without a standard outside kitchen)
  • JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
  • LED exterior lighting package
  • Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with one-piece, seamless roof material with a lifetime year warranty
  • Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
  • Pass-through storage with Slam-latch™ baggage doors
  • Skirt metal enclosed drop frame
  • Stronghold VBL™ aluminum framed and vacuum bond laminated gelcoated fiberglass exterior walls (including slide room end walls)
  • Under-mounted spare tire
  • Water heater bypass

Standard Interior Equipment

  • 12V charging station
  • 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. roof decking
  • Bathroom skylight
  • Built-in laundry hamper in wardrobe (select models)
  • P.A.P. night stands on either side of the bed
  • Carbon monoxide and LP detector
  • Cedar-lined front wardrobe closet
  • Ceiling fan (select models)
  • Cup holders in bedroom nightstands (N/A 36SSWS)
  • Extra 120V power outlets in kitchen and slide rooms
  • Farmhouse stainless steel kitchen sink
  • Flip-up countertop extension with 24 in. x 24 in. butcher block bar top (select models)
  • Flip-up hidden storage in bedroom chest of drawers (select models)
  • Flip-up tabletop storage next to tri-fold sofa (select models)
  • Gas-strutted under-bed storage
  • Handcrafted hardwood glazed doors, stiles, drawers and trim
  • JayVoice voice command system - controls lighting, A/C and furnace
  • LED accent lighting above slideouts
  • LED backlit custom framed mirror and medicine cabinet
  • LED interior lighting throughout
  • Porcelain toilet with foot flush
  • Pull-out spice rack above microwave (select models)
  • Pull-out utility drawer under kitchen sink
  • Residential quilted bedspread and pillows
  • Residential-grade, pull-out kitchen faucet
  • “Shoe garage” in hallway step (select models)
  • Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
  • Solid hardwood slide fascia
  • Toe kick nightlights in bedroom, bathroom and kitchen
  • Tri-fold hide-a-bed sofa with sleep surface (select models)
  • Vessel bowl sink with high rise faucet in main bath
  • Vinyl flooring (made in the USA) throughout including slide rooms

Customer Value Package (Mandatory)

  • 15,000 BTU “Whisper Quiet” A/C (bedroom)
  • 15,000 BTU “Whisper Quiet” A/C with heat pump (main)
  • 16 gal. gas/electric DSI water heater

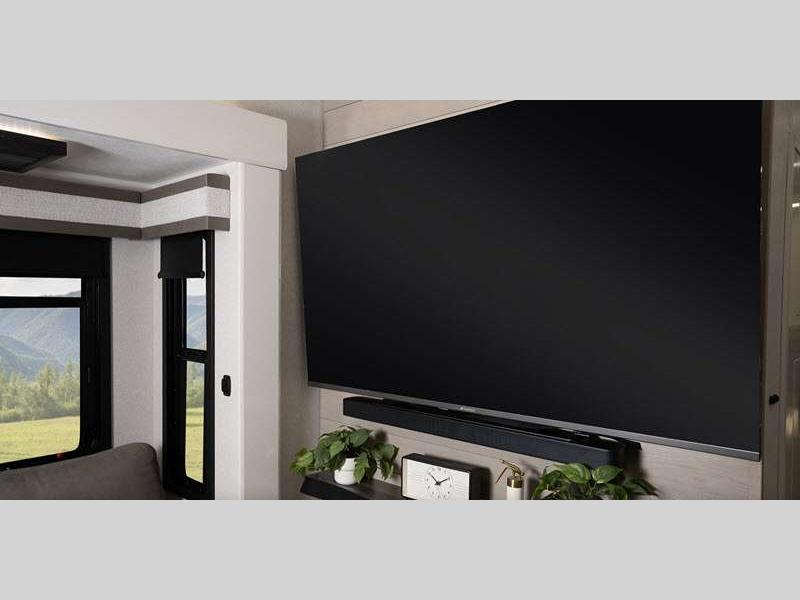

  • 50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI® cables
  • Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
  • Custom machined aluminum rims
  • Electric patio awning with integrated LED lights
  • Hidden hinges on cabinet doors
  • JBL® home entertainment system with sound bar and subwoofer
  • Keyed-Alike™ lock system (single key for all doors/locks)
  • MORryde Safe-T-Rail grab handle
  • Residential king (72 in. x 80 in.) mattress with under-bed storage
  • Rooftop and ground solar prep
  • Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches

5 Star Handling Package (Mandatory)

  • 5 in. 16 ply 'H' rated Uniroyal tires
  • Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
  • MORryde® LRE-4000™ rubberized suspension
  • MORryde® rubber pin box
  • Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs

Luxury Package (Mandatory)

  • 2nd electric patio awning with integrated LED lights
  • 32 in. 4K outside Smart LED TV
  • 32 in. 4K Smart LED bedroom TV
  • 6-point hydraulic auto-leveling system
  • Cellular prep for 4G WiFi antenna and JAYCOMMAND®
  • Central vacuum system with dust port
  • Day/night roller shades in living room
  • Frameless dark tinted safety-glass windows
  • Free-standing (no pedestal) table with leaf, (2) free-standing and (2) folding chairs
  • Fresh Water Drinking System (patented) for fresh drinking water at the kitchen sink and water/ice dispensers in the residential refrigerator
  • GE 21 cu. ft. residential refrigerator with 1800W inverter
  • GE Profile Series 30 in. residential convection microwave with built in air fryer
  • GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
  • High gloss gelcoated sidewalls
  • JAYCOMMAND® “Smart RV” system
  • LED fireplace with electric space heater
  • MORryde® StepAbove™ entrance steps (main entrance) with strut assist
  • Oversized multi-battery compartment (industry leading room for 4-6 batteries)
  • Powered 50-amp cord reel
  • Residential solid-surface kitchen countertop with solid-surface sink covers
  • Residential walk-in shower with shampoo/soap holder, teak seat and shower tower
  • Solid hardwood cabinet stiles
  • Washer/dryer prep

Options

  • 20 cu. ft. 12V refrigerator
  • 3rd 15,000 BTU ducted A/C
  • 5,500W Onan® Microquiet generator
  • 7K hydraulic disc brake package (ABS N/A with disc brakes)
  • 8K hydraulic disc brake package (ABS N/A with disc brakes)
  • Butler’s pantry (in place of half bath 38FLGS)
  • Frameless dual-pane tinted safety-glass windows
  • Front wardrobe in place of front windshield and sofa lounge (36SSWS)
  • Full body paint- Sand, Steel and Diamond
  • Generator prep
  • MORryde independent suspension with 8K axles and disc brakes (ABS not available)
  • Outside griddle for JayPort system (32RLTS, 36FBTS, 36KPTS, 36SSWS)
  • Overlander 2 Solar Package: 30-amp controller, (1) 1800W inverter and (2) 200W solar panels
  • Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
  • Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
  • Queen residential foam-top mattress
  • Sani-Con® Turbo waste management system
  • Slideout awning(s) (quantity varies by model)
  • True interior design choice (Modern Farmhouse or Vintage Farmhouse)
  • Truma on-demand hot water system
  • Wireless backup/side view/front entry door observation kit with 7 in. monitor

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Jayco Logo

More than 50 years and still fun!



Peace and love were in the air—and so was entrepreneurial spirit. In 1968, Lloyd and Bertha Bontrager set out to make a family dream a reality in their quiet corner of Northern Indiana. Let the fun begin!



In the '70s, while families gathered  around the newfangled video boxes (TVs of course!), we began to make a name for ourselves too, acquiring competitors, delivering new products and selling internationally for the first time. Look out, TVs! We’ve got an idea for family time too.



Jayco was established among the powers of the RV industry in the '80s and we mourned the loss of our fearless leader, Lloyd, in a tragic plan crash. That did not stop the momentum, but instead  we doubled down on the vision for family fun.



In the '90s Jayco acquired Starcraft, one of the oldest and most respected builders of campers. Lloyd was inducted into the RV Hall of Fame.  We built and shipped our 300,000 unit in 1997, and our new corporate headquarters facility was completed in Middlebury, Indiana.



In 2002, Jayco introduced the Jay Flight travel trailers which as of today, has been the #1 selling travel trailers in North America for thirteen years straight.  In 2006, we built and shipped our 500,000th unit, and introduced the first lightweight toy hauler travel trailer built with a wider stance, known first as the Talon.  And, in 2008, we acquired assets of the former Travel Supreme and launched the Class A diesel-pusher Entegra Coach division.



Between four division of Jayco, Starcaft RV, Entegra Coach and Highland Ridge RV in May of 2016, we built and celebrated our 1,000,000the unit in total.  On July 1st of the same year, Jayco Corporation, including all of the brands of Jayco, Starcraft RV, Entegra Coach, and Highland Ridge RV, was acquired by Thor Industries.



Fast forward to the '20s, a global pandemic reawakened everyone's desire to get outside and sparked another golden age for the RVing community.  With eyes toward a bright future, Jayco, Entegra Coach, Highland Ridge and Starcraft unified as the Jayco Family of Companies.
